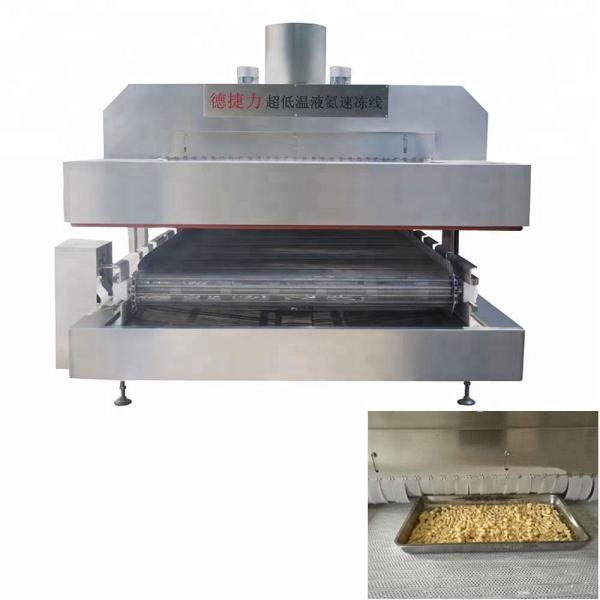

Ultra Cold Small Flash Freezer 600kg/Hour 700kg/Hour For Taro Grains

Product Categories
Shenzhen Dejieli Refrigeration Technology Co., Ltd.
Contact Now

Ultra Cold Small Flash Freezer 600kg/Hour 700kg/Hour For Taro Grains

  • 1
  • 2
  • 3

Place of Origin : Guangdong, China

Brand Name : DJL

Certification : ISO9001

Packaging Details : sea shippment package

Supply Ability : 100 Set/Sets per Year

Price : negotiable

Model Number : DJL-IQF-1209E

MOQ : 1 SET

Payment Terms : T/T

Delivery Time : 30-45 working days

Core Components : PLC

Type : Tunnel Freezer

Power : 12kw

Cooling Capacity : 400-600kg/hour

Working temperature : -35℃~Room temperature

Application : vegetables, fruit, seafood, poultry, high value-added food

Contact Now

DJL Mesh Belt Blast Tunnel Quick Freezing Equipment For Vegetables/Taro Grains

Product Description

DJL Mesh Belt Blast Tunnel Quick Freezing Equipment For Vegetables/Taro Grains is a high efficient quick freezing machine with small floor space and large capacity. It is mainly suitable for bread fermentation and cooling; freezing aquatic products, flour products, meat, poultry, bagged condiment, dairy products and ice cream, etc. The capacity is 300kg/hr~3000kg/hr.

Regular Specifications

Equipment material: the internal and external parts of equipment body are made of SUS304 stainless steel, which is durable in use without any corrosion.
Working temperature: -35℃~room temperature
Temperature control precision: ±2℃
Temperature uniformity: ±5℃
Outline dimension: 12*2.7*2.5 meters
Frozen capacity 300kg/h
Food transportation: The SUS304 special food conveyor belt is equipped with variable frequency and variable speed motor, the transportation speed can be adjusted flexibly as per different products; Furthermore, the equipment is equipped with belt elastic automatic regulating device, to ensure the stable and long-term operation of food transportation belt.
Equipment maintenance: The equipment side is equipped with maintenance & cleaning gate to facilitate the cleaning and maintenance of conveyor. The bottom of engine body is equipped with drainage outlet to drain water from the equipment. The whole equipment is long life, low consumable design, the easily-damaged parts can be replaced easily and rapidly with excellent maintainability.

1. Stainless steel conveyor belt;
2. Sandwich PUF panels 120mm thick, laminated by stainless steel sheet both sides; floor panels are equipped;
3. Doors are equipped with frame heating device;
4. Aluminum evaporators, different fin pitches;
5. Axial fans: stainless steel air box, aluminum blades;
6. Full welded stainless steel water discharging plate is installed on top of floor panels. It will bring defrosting water out of cabinet through stainless steel draining pipes;
7. The inlet device, outlet device and all structure parts are made of stainless steel;
8. Control panel is made of stainless steel;
9. Schneider or Siemens electric components;

10. SEW speed reducer.

Our Advantages
1.More than 10 years of professional recognition for ultra-low temperature deep cooling ,own independent intellectual property rights with more than 10 patented technologies.
2.The ability of compound innovation and multi-technology integration makes DJL unique in freezing machine industry.
3.Personalized scheme provides you the best cost performance of product
4.Close cooperative relationships with many universities
5.Three minutes quick-freezing ,the temperature low to minimum -196℃
6.Reasonable &exclusive quick-freezing total solution maximize utilize/save customers cost.
7.Free experiment and verification supporting .
8.Better serving customers by setting up branches and offices in country's areas.
